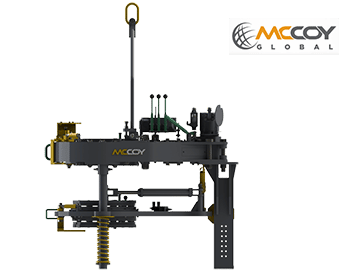

McCoy KT8625 Casing Power Tong

8-5/8″ • 25K Hydraulic Power Tong

Texas International Oilfield Tools, LTD. the world’s largest stocking distributor of McCoy products.

Request a Quote

Product Information

Part No:

Size range:
2.375″ to 8.625″

Hydraulic power supply:
2,500 psi and 60 gpm

Maximum low gear torque and speed:
25,400 ft.-lb. and 12 rpm

Maximum high gear torque and speed:
5,100 ft.-lb. and 58 rpm

Torque handle length:
36″ (91.4 cm)

Overall length (Doors Closed):
54″ (137.2 cm)

Overall width:
30″ (76.2 cm)

Overall height:
49″ (124.5 cm)

Optional Backups

CLINCHER® Compression 7625
CLINCHER® Compression 8625
FARR Frame Mounted Wedge Style 8625

Jaws and Dies

Wraparound or Dovetail jaws
Fine Tooth Steel or GRITFACE® dies

Optional Accessories

Lift cylinder or spring hanger
Load cell/Torque gauge
Rigid bail or chain bail


* Formerly labelled KT7585, this tong has been rebadged as KT8625. There have been no design changes to this tong. It still functions the same and has the same torque and rpm.


2,300 lb. (1045 Kg)
